Our Tunnel Models

Wind tunnel optimized for entertainment flying

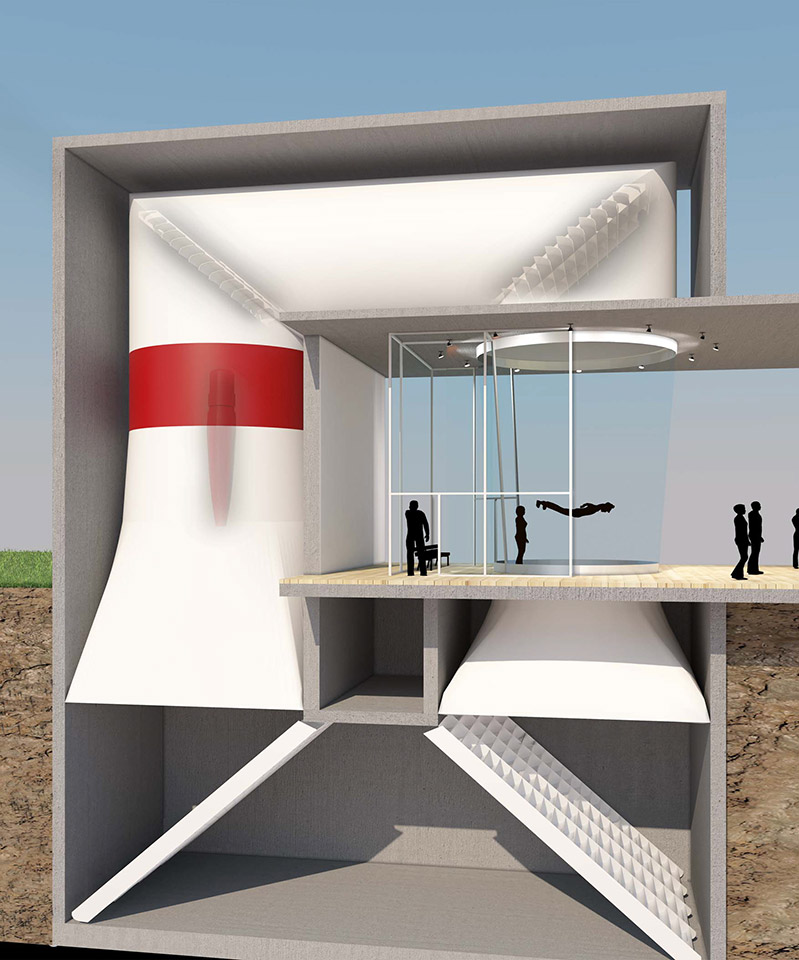

ISG 13.500
Flight Chamber* 13ft (3,96 m)
Power 500 KW / 680 PS
Speed 130 mph (210 km/h)
Average energy consumption

at sealevel IATA standard atmosphere

400 KW

entertainment

Available options
  • active cooling
  • round diffusing flight chamber



High performance wind tunnels

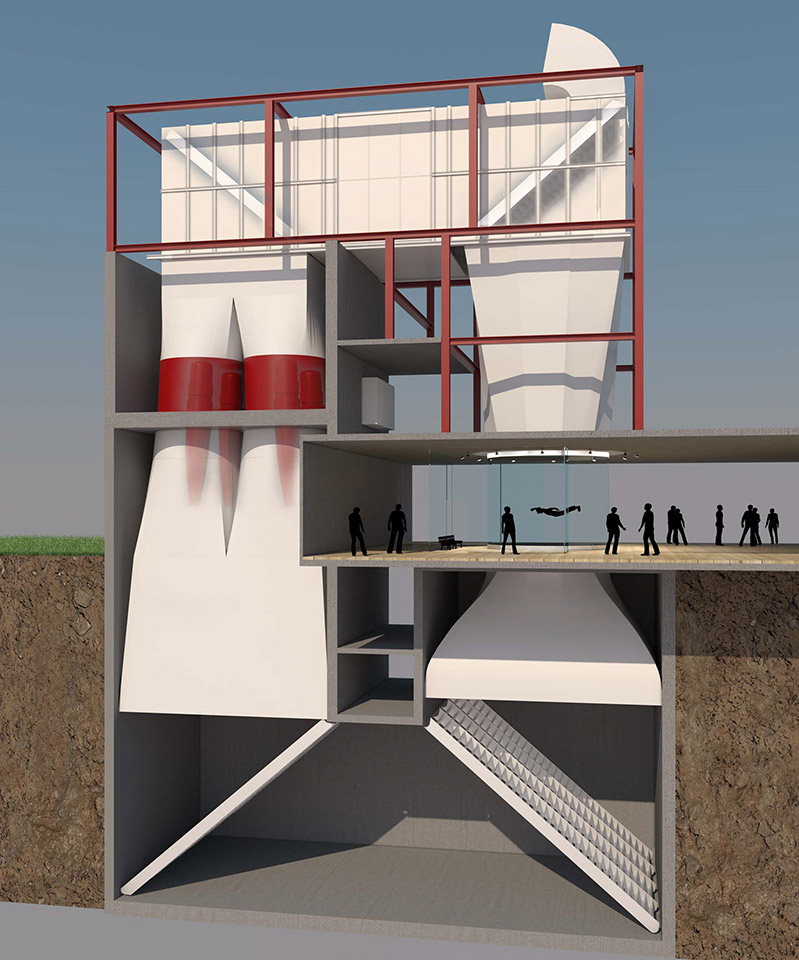

ISG 12.800 ISG 14.1200 ISG 17.1600
Flight Chamber* 12ft (3,66 m) 14ft (4,26 m) 17ft (5,18 m)
Power** 800 KW / 1.088 PS 1200 KW / 1.632 PS 1600 KW / 2.175 PS
Speed 170 mph (280 km/h) 170 mph (280 km/h) 170 mph (280 km/h)
Average energy consumption***

at sealevel IATA standard atmosphere

270 KW

mix entertainment/skydiver

400 KW

mix entertainment/skydiver

600 KW

mix entertainment/skydiver

Available options
  • multiple or single fan technology
  • passive or active cooling solution
  • 12 corners or round flight chamber design



* Wall-to-wall measurements
** This is the engine power we recommend for our windtunnels to fulfill freefly requirements, but we can also offer lower or higher power for the respective model where the owner has a special interest
*** Depending on the respective belly versus freefly mix

All of our windtunnel models are delivered with a flight chamber in our unique full glass construction without any structural steel. For the vitrification of the flight chamber ISG uses special glass of German manufacture with particular sound insulating, scratch resistant, bullet-proof characteristics.

Our design combines maximum visibility and minimium noise in the visitors area with highest German safety standards for entertainment and Pro-Flyer operations.

The air stream in our closed windtunnel models is pratically free of turbulences. In our full glass flight chamber dropping out of the air stream is impossible. Low noise levels and energy efficiency characterize our windtunnels.

The total height of the flight area ranges between 15 and 20 meters depending on the ISG model.

Flyers enter the Ante-Chamber through a pressure gate allowing to enter and exit the Ante-Chamber while the tunnel is running.

Our Ante-Chamber is suitable for 15+ persons and temporarily allows the presence of 30 people. This is a decisive factor for entertainment operations, allowing for a running substitution of customer groups. Together with the pressure gate, this assures efficient entertainment operations and higher sales volumes.

With a maximum air speed above 170mph (270 km/h) ISG windtunnels are equally suitable for traditional belly flyers and free flyers. In our windtunnels, Pro-Flyers may train and fly all free-fly positions from sitfly through headdown.
